Building Resilient Networks: Cabling Strategies for Uptime

Estimated Reading Time: 12 minute(s)

Why network resilience starts with the cabling infrastructure

Every digital initiative in a modern workplace from hybrid meetings and cloud apps to IP security, access control and smart‑building systems rests on the same foundation: your physical infrastructure. Resilience isn’t just a property of switches and firewalls; it begins with how and where your cables run, how they’re powered, protected, labelled and tested, and whether the physical design eliminates single points of failure.

When cabling is treated as an afterthought, the symptoms show up everywhere else: jittery video, intermittent device drops, unexplained outages in certain zones, and “ghost” faults that bounce between teams. Conversely, when the cable infrastructure is engineered for redundancy, diversity, maintainability and observability, uptime stops being a negotiation and becomes a design outcome.

This article focuses on practical cabling strategies from diverse risers and redundant fibres to PoE power envelopes and cabinet discipline that keep UK enterprises running, floor after floor, year after year.

What actually fails in the real world (and why)

Before designing for resilience, it helps to understand why networks go dark. In our fieldwork across offices, campuses and venues, the root causes of downtime at the physical layer fall into a handful of patterns:

  • Single‑path dependencies: One riser, one tray, one duct, one building entry, or one fibre pair carrying all critical services. A single drill bit, fire event or water ingress can sever the only route.
  • Overheated PoE bundles: High‑power PoE (e.g., 802.3bt) concentrated in hot environments causes voltage drop, derating and intermittent device resets—especially in overfilled pathways.
  • Poor containment and workmanship: Excessive bend radii, crushed cables under trays, sharp edges, unsupported sections and loose fire‑stopping. These don’t always fail on day one—they fail on the hottest day, during the biggest meeting.
  • Electromagnetic interference (EMI): Data cabling sharing routes with high‑load power, lifts or LED drivers without appropriate separation, shielding or earthing.
  • Cabinet sprawl and patching chaos: No labelling schema, no documentation, and no room to work safely. A minor change becomes a thirty‑minute outage.
  • No baselines, no telemetry: Plants were never certified to category, fibres lack OTDR traces, and the network isn’t monitored for error counters or PoE events so early‑warning signs are missed.

Resilience means designing out as many of these as possible, and detecting what remains early enough to act.

Design outcomes for uptime: the four pillars

  1. Redundancy: Duplicate what must not fail links, pathways, termination points so the service survives a single fault.
  2. Diversity: Ensure redundant elements do not share a common mode of failure (e.g., separate risers, opposite facades, different ducts or ceilings).
  3. Maintainability: Make the plant easy to work on under time pressure clear labelling, slack management, service loops, and safe cabinet layouts.
  4. Observability: Certify and baseline the entire plant, and expose live telemetry (errors, PoE draw, temperature) so small issues never become big outages.

Topology choices at the cabling layer

Star‑of‑stars with resilient distribution

In multi‑storey offices, a star‑of‑stars topology remains the gold standard: horizontal runs from outlet/ceiling device to a local telecoms room (TR), and resilient fibre uplinks from each TR to distribution/core. For resilience:

  • Dual fibres per TR to diverse core switches (or separate switch stacks) with physically diverse riser routes.
  • Spare strands pulled and capped in each route; the cheapest time to add redundancy is when the ceiling is open.
  • Local patching discipline: Keep horizontal copper to 90 m channel budgets with tidy, labelled patching; avoid chaining small switches above ceilings.

Rings vs. dual‑star

Campus and venue designers often consider fibre rings. Rings offer alternate paths but can introduce operational complexity. A dual‑star (each edge/TR dual‑homed up separate paths) is simpler to reason about and keeps failure domains small. If a ring is used, treat splicing closures and handholes with the same diversity rules as entry ducts—two faults shouldn’t share a pit.

Consolidation points and MPTL

For ceiling devices (APs, cameras, sensors) in open offices, MPTL (Modular Plug Terminated Link) cabling avoids excess connections and improves reliability. Where consolidation points are required (e.g., churn‑heavy zones), keep them accessible, labelled and documented; they are a legitimate tool, not a shortcut, when planned correctly.

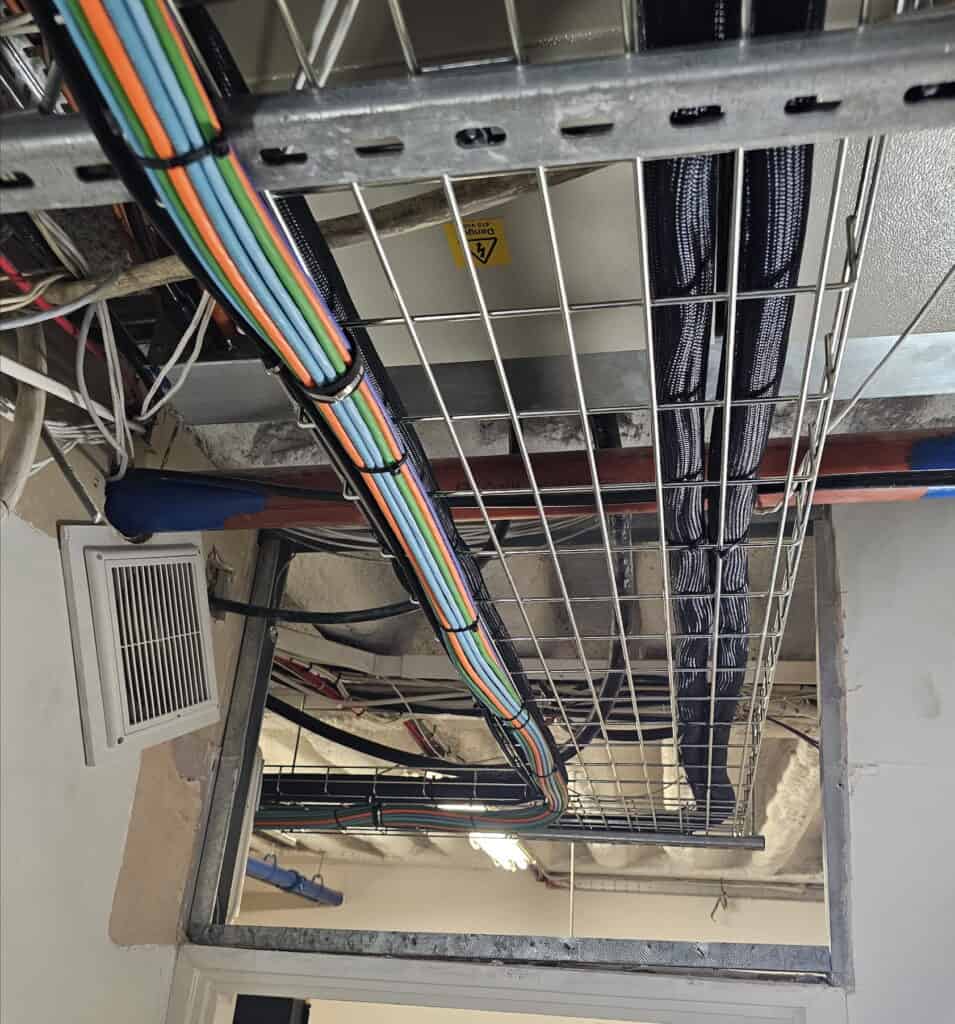

Physical pathway strategy: diversity you can see

Think of pathways as roads. Resilience isn’t just having two lanes—it’s having two roads that don’t flood together or close for the same works. Practical steps:

  • Two risers per block, serving opposite halves of the floorplate. If that’s not possible, use diverse tray runs that split early and re‑converge only at the destination.
  • Diverse building entries for carrier services and campus fibre: opposite facades where possible, different ducts, and separated internal routes to the comms room.
  • Separation from power to BS/EN best practice: route planning avoids paralleling high‑load cables for long distances; cross power at 90° where required.
  • Environmental resilience: Avoid routes with known condensation or water‑ingress risks; use external‑grade/SWA where exposure demands it; seal penetrations meticulously for fire and smoke.
  • Slack and service loops: Include manageable slack at panels and device ends; it’s cheap insurance for maintenance and future moves.

A useful mental check: “If a contractor cut or flooded any one tray, any one duct, or any one riser, would critical services stay up?” If not, add diversity.

Fibre backbone resilience: where minutes matter

Backbones carry the aggregate of everything below them, so the cost of downtime is magnified. Key practices:

  • Single‑mode first: For new campus and riser builds, single‑mode fibre (SMF) provides the longest horizon for 10/25/40/100 GbE and beyond. Multi‑mode may still suit short internal risers (OM4/OM5), but don’t strand yourself on the wrong glass.

  • Multiple, diverse routes: At least two physically separate fibre routes per TR. Never run both a primary and a “backup” in the same duct or tray.

  • Connector and splicing hygiene: Use high‑quality LC/MPO components, control dust meticulously, and document dB budgets per span. Failures here are often avoidable “human factors”.

  • OTDR and certification baselines: Capture and retain OTDR traces for each span at handover; they are invaluable for fault location and for defending SLAs with carriers or landlords.

  • Spares and sparing strategy: Maintain spare pigtails, cassettes and a handful of matching optics per tier. Minutes matter when a circuit goes dim during trading hours or a board meeting.

If your backbone is due a re‑design (e.g., to support higher‑density floors or edge compute), it’s worth reviewing how data‑centre core interconnects will integrate; our data centre solutions team can align risers and spines so the office and core evolve in step.

Horizontal copper for resilience: Cat6a as your baseline

Horizontal runs underpin everyday uptime. In 2025 the enterprise default remains Cat6a for good reasons:

  • Headroom for multi‑gig: Even if you start at 1 GbE, Cat6a comfortably supports 2.5/5/10 GbE to 100 m—critical as Wi‑Fi 6E/7 and UC workloads rise.

  • Better PoE thermals: Larger conductors and better alien‑crosstalk characteristics reduce temperature rise in powered bundles, keeping devices stable.

  • EMI margin: In mixed‑use buildings with lifts, HVAC, LED drivers or plant, Cat6a’s noise immunity protects your service envelope.

Shielding and earthing: Use U/UTP or F/UTP based on environment; if you specify shielded cabling, ensure consistent earthing and bonding end‑to‑end. Poorly terminated shield is worse than none.

Spares and serviceability: Pull a small percentage of spare runs to critical zones (e.g., boardrooms), and keep them documented and dressed. Well‑placed spares turn a 90‑minute outage into a 9‑minute fix.

Power strategy & PoE resilience (because no power = no network)

Resilience is as much an electrical question as a data question:

  • Right‑sized PoE budgets: New tri‑radio APs, PTZ cameras and analytics sensors can draw 25–45 W. Dimension switch per‑port classes (PoE+/UPoE/802.3bt) and total budget per stack with worst‑case power in mind.

  • Thermal management: High‑power PoE generates heat. Control bundle sizes, avoid hot pathways, ventilate cabinets, and prefer Cat6a for its thermal behaviour.

  • Endpoint vs. midspan: Where switch PoE is constrained, midspan injectors can be strategic for a handful of high‑draw devices. Treat them as first‑class citizens (documented, powered, monitored), not ad‑hoc fixes.

  • UPS and segmentation: Back up core and access closets with appropriately sized UPS so a brief mains disturbance doesn’t ripple into hours of device re‑associations. Segment critical PoE loads across separate switches/PDUs so a single failure doesn’t darken every camera on a floor.

  • LLDP policies: Use LLDP‑MED/PoE negotiation consistently; it prevents under-powering that manifests only at busy hours.

Cabinets, rooms and patching: day‑two resilience

You don’t operate the network in Visio; you operate it in the cabinet. Design for safety and speed:

  • Space and airflow: Respect RU planning, keep hot equipment in appropriate racks, and avoid blocking airflow with cabling.

  • Aisle hygiene: Safe working clearances and properly secured ladders/trays reduce accidental dislodgement during maintenance.

  • Patching discipline: Short patch cords, colour‑coded where helpful, all labelled to schema (floor‑cabinet‑RU‑panel‑port). A patch field you can read at 2am beats tribal knowledge every time.

  • Document as‑builts: Update drawings after any change. If documentation lags reality, resilience is already eroding.

If your cabinets are already a chokepoint, a focused tidy can change operational outcomes overnight—fewer mistakes, faster MACs, safer access. (Ask about our cabinet remediation if this resonates.)

Campus and outside‑cable considerations

Between buildings, environmental and civil factors dominate:

  • Diverse duct routes: Two physically separate ducts between buildings, with independent entry points and distinct internal path to the comms rooms.

  • External‑grade choices: Use armoured (SWA) or micro‑duct solutions where excavation risk exists; ensure correct water‑blocking and UV‑resistant jackets.

  • Lightning and earthing: Treat outside cabling  with appropriate protection; earth metallic elements and follow best practice for surge suppression at building entry.

  • Wireless as a resilience layer: In some estates, a licensed or carefully engineered point‑to‑point wireless link provides an alternate path if a fibre is damaged during civil works. For design considerations and use cases, see point‑to‑point wireless links.

Testing, monitoring and run‑books: evidence beats assumptions

Resilience isn’t a one‑time activity; it’s a lifecycle.

  • Acceptance testing: Certify copper to category (NEXT, PSANEXT, RL, delay), test PoE under load, and capture OTDR traces for every fibre span.

  • Baselines: Store results centrally and treat them as gold. When performance drifts, you’ll know what changed.

  • Observability: Watch switch counters (CRC/FCS errors, discards), PoE events, and environmental telemetry (cabinet temps, humidity). Alert on deviations, not just outages.

  • Run‑books: Write down how to fail over, how to repatch, and how to power‑cycle without making it worse. In a crisis, laminated run‑books save minutes—and minutes matter.

For a structured, independent view of current risk—plus a prioritised remediation plan—use a formal audit as your starting point: cabling and network auditing services.

Migration without drama: phased upgrades that keep the lights on

  • Zone by zone: Start with the highest business impact (boardrooms, collaboration hubs, trading or operations floors). Maintain parallel service during cutover windows.

  • Fit‑out alignment: The cheapest time to add diverse pathways and spares is during planned fit‑outs—when ceilings are open and trades are on site.

  • Bridging tactics: Where a full re‑pull isn’t feasible immediately, prioritise new home‑runs for critical devices and TR uplinks, with clear end‑dates for temporary media converters or injectors.

  • Rollback plans: Every change window gets an explicit rollback. Resilience isn’t just early planning—it’s discipline under pressure.

Budgeting for resilience: where the ROI hides

Resilient cabling isn’t an aesthetic investment; it’s measurable risk reduction:

  • Reduced incidents and MTTR: Clear pathways, documented routes and spares turn faults into fast fixes.

  • Fewer business‑hour surprises: Better PoE thermals and diverse routes eliminate “random” device drops and accidental back‑hoe moments.

  • Compliance and insurance: Documented fire‑stopping, earthing and load management reduce audit time and risk premia.

  • Enablement: With a trusted plant, you can confidently deploy Wi‑Fi 6E/7, UC suites and IP security without constantly chasing “mystery” faults.

Real‑world reliability: trading floors, venues and beyond

Uptime is most visible where every second counts—trading floors, control rooms, broadcast or live venues. Designs that succeed in these environments share a pattern: diverse risers, dual‑homed TRs, disciplined patching, and spare optics staged on‑site. For an illustration of standards‑led delivery in a mission‑critical, time‑sensitive environment, see Transforming Sumitomo Corporation Europe Limited’s London trading floor.

Quick-fire FAQ’s

How do I build cabling resilience?
Use redundant links over diverse physical pathways, certify everything, right‑size PoE and switch budgets, and maintain impeccable cabinet hygiene with live documentation.

What’s the best cable for resilient office networks?
In 2025, Cat6a is the enterprise baseline for horizontal runs; pair it with single‑mode fibre risers and campus links for long‑term headroom.

How many spares should we pull?
At least one spare fibre pair per route per TR and a small percentage of spare copper runs to critical zones. Spares are cheap during install and priceless during incidents.

Do we need wireless back‑up between buildings?
Sometimes. A well‑engineered point‑to‑point wireless path can provide interim resilience during civil works or where diverse ducts aren’t feasible.

Final thoughts & next steps

Cabling resilience is not an optional extra—it’s the precondition for everything you want your workplace to do, reliably, at scale. The best time to design it in is before you need it; the second‑best time is now.

If you want to baseline risk, uncover single points of failure and design a future‑proof path (without disrupting the day job), let’s start with evidence and a plan:
